Here's how the Ford GT's aero works

Function and form: here's how the GT bends air to its will

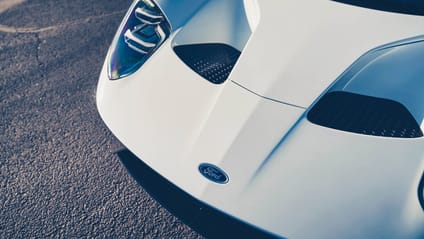

  • The front end

    A Ford GT wouldn't be a Ford GT without those flat headlights, cutaway nose and vents in the bonnet, but nothing is here purely for styling's sake. Air gobbled up by the front intakes is expelled through the bonnet so it runs smoothly over the wrap-around windscreen and along the roofline. Movable front flaps open and close depending on the angle of the rear wing, ensuring front and rear downforce is always perfectly balanced and you stay stuck to the road.

    Advertisement - Page continues below
  • The flying buttresses

    The GT's gaping flying buttresses aren't just there to look pretty - they help to channel air around the teardrop-shaped canopy and over the rear spoiler. Beneath them (and in front of the rear wheelarch) an intake feeds air to the turbo intercoolers, before expelling it through the centre of the bullseye rear lights.

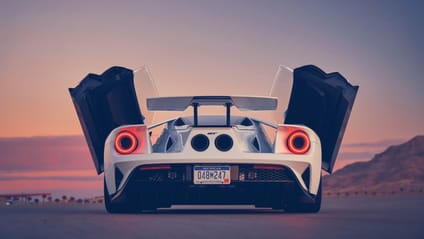

  • The rear end

    The racing version of the Ford GT has no rear bumper at all, to make way for a full-width diffuser that looks like the world's largest mandolin. It's one of the most aggressive rear ends on the LM GTE grid. The road car tones that down a bit for the sake of practicality and styling, but still uses vanes to suck that air smoothly out of the back of the car, creating an area of low pressure along the flat underbody and more downforce.

    Advertisement - Page continues below
  • The rear wing

    The GT's moveable spoiler is a thing of beauty. Depending on your driving mode it will automatically alter its angle of attack for more or less downforce, and can even change shape: when max downforce is required, a gurney flap extends the trailing edge. It can even flip vertical to become an air brake when you stomp hard on the carbon ceramic discs.

    Video: watch the Ford GT engage 'Race' mode here

    Of course, the GT is more than just aero. Want to learn more about its engine? Click on...

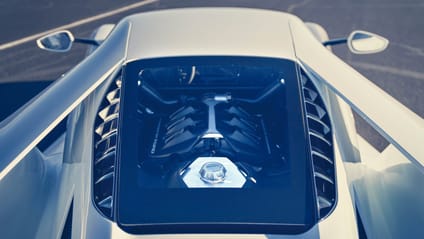

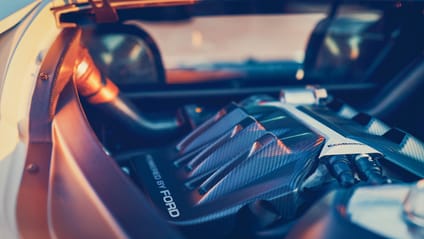

  • The engine bit

    Normally in the land of supercars, cylinder count is king, but the GT is different. "We started with aerodynamic efficiency - the efficiency of racing goes right down to the very core of its existence," explains Jamal Hameedi, Ford Performance's chief engineer. "Aero came first then we picked the most efficient EcoBoost engine we could find for that package."

    The engine coaxed into the tapering fuselage is a 3.5-litre twin-turbo V6, producing - as we've now discovered - 647bhp, connected to a new Getrag-developed seven-speed twin-clutch gearbox.

  • Unusually, you'll find the two turbos and intercoolers tucked neatly into the pods over the rear wheels for optimum weight distribution... and because there simply isn't space to package them any closer to the block. From there the cool, compressed air is sent up through ducts in the hollow flying buttresses and down into the engine.

    The turbos currently fitted to the engine are far larger than they need to be to stay within the FIA's balance of power rules. Raj Nair says they will be downsized before the car is homologated and goes on sale. Smaller turbos mean even greater responsiveness so, along with Ford's patented anti-lag system (which stops the turbo speed from dropping below a certain rpm even when the engine is running off-boost), the GT should be even more alive than it is now.

    We've tried this anti-lag system on the new F-150 Raptor, which shares the same basic high-power engine configuration as the GT. In Baja mode, the engine refuses to bog even when confronted with torque-draining sumps of sand. So it bodes well for the GT's ability to fire itself out of corners even faster.

    Feature: Full throttle in the Ford GT
